Specification Table
208-690 Volts, 50/60 hz (Open Type)
Part
Number |
Fund-
amental Amps |
Induct-
ance |
Watts
Loss |

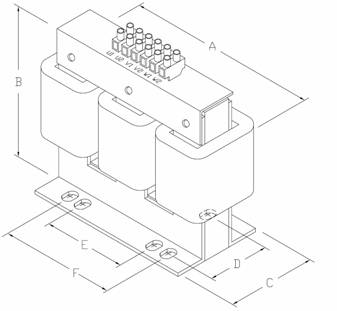

Cabinet
|
A Width
mm/in. |
B Height
mm/in. |
C Depth
mm/in. |
D
mm/in. |
E
mm/in. |
F
mm/in. |
Wgt.
Kg/Lbs. |
---|---|---|---|---|---|---|---|---|---|---|---|
RLW-00P501 | 0.5 | 22mH | 2.3 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.5 |
RLW-00P503 | 0.5 | 46mH | 3.6 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.5 |
RLW-00P505 | 0.5 | 74mH | 4.8 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.6 |
RLW-00P506 | 0.5 | 92mH | 5.4 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.6 |
RLW-0P7501 | 0.75 | 15mH | 4.2 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.6/1.4 |
RLW-0P7503 | 0.75 | 31mH | 6.6 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.5 |
RLW-0P7505 | 0.75 | 49mH | 8.8 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.5 |
RLW-0P7506 | 0.75 | 61mH | 10.1 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.6 |
RLW-01P101 | 1.1 | 10mH | 4.8 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.5 |
RLW-01P103 | 1.1 | 21mH | 7.8 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.6 |
RLW-01P105 | 1.1 | 33mH | 10.1 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.6 |
RLW-01P106 | 1.1 | 42mH | 11.9 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.8/1.7 |
RLW-01P601 | 1.6 | 6.9mH | 6.9 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.5 |
RLW-01P603 | 1.6 | 14mH | 10.9 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.6 |
RLW-01P605 | 1.6 | 23mH | 15 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.6 |
RLW-01P606 | 1.6 | 29mH | 17.7 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.8/1.7 |
RLW-02P101 | 2.1 | 5.3mH | 9 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.5 |
RLW-02P103 | 2.1 | 11mH | 14.3 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.6 |
RLW-02P105 | 2.1 | 18mH | 19.6 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.8/1.7 |
RLW-02P106 | 2.1 | 22mH | 22.3 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.8/1.7 |
RLW-03P401 | 3.4 | 3.2mH | 12.3 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.6 |
RLW-03P403 | 3.4 | 6.8mH | 19.6 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.7/1.6 |
RLW-03P405 | 3.4 | 11mH | 26.5 | CAB-8 | 112/4.4 | 127/5 | 71/2.8 | 51/2 | 36/1.4 | 0/0 | 1.2/2.7 |
RLW-03P406 | 3.4 | 14mH | 31.5 | CAB-8 | 112/4.4 | 127/5 | 71/2.8 | 51/2 | 36/1.4 | 0/0 | 1.3/2.8 |
RLW-04P801 | 4.8 | 2.3mH | 13.8 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.8/1.7 |
RLW-04P803 | 4.8 | 4.8mH | 23 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.8/1.8 |
RLW-04P805 | 4.8 | 7.7mH | 37.5 | CAB-8 | 112/4.4 | 127/5 | 71/2.8 | 51/2 | 36/1.4 | 0/0 | 1.3/2.8 |
RLW-04P806 | 4.8 | 10mH | 40.1 | CAB-8 | 112/4.4 | 127/5 | 79/3.1 | 53/2.1 | 36/1.4 | 0/0 | 1.8/4 |
RLW-07P601 | 7.6 | 1.5mH | 19.2 | CAB-8 | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 0.8/1.8 |
RLW-07P603 | 7.6 | 3mH | 37.2 | CAB-8 | 112/4.4 | 127/5 | 71/2.8 | 51/2 | 36/1.4 | 0/0 | 1.3/2.8 |
RLW-07P605 | 7.6 | 4.8mH | 47.8 | CAB-8 | 112/4.4 | 127/5 | 79/3.1 | 53/2.1 | 36/1.4 | 0/0 | 1.9/4.1 |
RLW-07P606 | 7.6 | 6mH | 53.8 | CAB-8 | 112/4.4 | 127/5 | 79/3.1 | 53/2.1 | 36/1.4 | 0/0 | 1.9/4.2 |
RLW-001101 | 11 | 1mH | 26.8 | CAB-8 | 112/4.4 | 127/5 | 71/2.8 | 51/2 | 36/1.4 | 0/0 | 1.2/2.7 |
RLW-001103 | 11 | 2.1mH | 40.9 | CAB-8 | 112/4.4 | 127/5 | 79/3.1 | 53/2.1 | 36/1.4 | 0/0 | 1.9/4.2 |
RLW-001105 | 11 | 3.3mH | 54.4 | CAB-8 | 112/4.4 | 127/5 | 89/3.5 | 66/2.6 | 36/1.4 | 0/0 | 2.4/5.3 |
RLW-001106 | 11 | 4.2mH | 59.1 | CAB-8 | 152/6 | 147/5.8 | 74/2.9 | 53/2.1 | 51/2 | 0/0 | 3.2/7.1 |
RLW-001401 | 14 | 0.79mH | 32.7 | CAB-8 | 112/4.4 | 135/5.3 | 71/2.8 | 51/2 | 36/1.4 | 0/0 | 1.3/2.8 |
RLW-001403 | 14 | 1.6mH | 48.2 | CAB-8 | 112/4.4 | 127/5 | 79/3.1 | 53/2.1 | 36/1.4 | 0/0 | 2/4.3 |
RLW-001405 | 14 | 2.6mH | 60.6 | CAB-8 | 152/6 | 147/5.8 | 74/2.9 | 53/2.1 | 51/2 | 0/0 | 3.2/7.1 |
RLW-001406 | 14 | 3.3mH | 66 | CAB-13V | 152/6 | 147/5.8 | 84/3.3 | 64/2.5 | 51/2 | 0/0 | 4.3/9.4 |
RLW-002101 | 21 | 0.53mH | 38.3 | CAB-13V | 112/4.4 | 135/5.3 | 84/3.3 | 61/2.4 | 36/1.4 | 0/0 | 1.9/4.2 |
RLW-002103 | 21 | 1.1mH | 57.4 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 3.3/7.2 |
RLW-002105 | 21 | 1.8mH | 73.5 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 4.5/10 |
RLW-002106 | 21 | 2.2mH | 78 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 6/13.3 |
RLW-002801 | 28 | .39mH | 48.2 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 2.3/5.1 |
RLW-002803 | 28 | .82mH | 66.8 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 4.3/9.5 |
RLW-002805 | 28 | 1.3mH | 93.8 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 4.7/10.4 |
RLW-002806 | 28 | 1.6mH | 110.6 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 6.5/14.3 |
RLW-003501 | 35 | .35mH | 68 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 76/3 | 4.5/10 |
RLW-003503 | 35 | .71mH | 102 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 5.9/13 |
RLW-003505 | 35 | 1.2mH | 121 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 8.2/18 |
RLW-004601 | 46 | 0.3mH | 77 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 5.9/13 |
RLW-004603 | 46 | 0.55mH | 99 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 7.7/17 |
RLW-004605 | 46 | 0.98mH | 179 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 108/4.26 | 10.9/24 |
RLW-005501 | 55 | 0.27mH | 67 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 8.2/18 |
RLW-005503 | 55 | 0.48mH | 109 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 9.1/20 |
RLW-005505 | 55 | 0.75mH | 149 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 108/4.26 | 11.8/26 |
RLW-006501 | 65 | 0.19mH | 87 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 8.2/18 |
RLW-006503 | 65 | 0.38mH | 105 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 10/22 |
RLW-006505 | 65 | 0.64mH | 214 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 108/4.26 | 11.8/26 |
RLW-008301 | 83 | 0.17mH | 119 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 0/0 | 8.6/19 |
RLW-008303 | 83 | 0.29mH | 155 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 108/4.26 | 11.8/26 |
RLW-008305 | 83 | 0.51mH | 197 | CAB-13V | 114/4.5 | 94/3.7 | 38/1.5 | 0/0 | 102/4 | 108/4.26 | 15.9/35 |
RLW-010401 | 104 | 0.12mH | 94 | CAB-13V | 183/7.2 | 152/6 | 165/6.5 | 70/2.75 | 76/3 | 108/4.26 | 10/22 |
RLW-010403 | 104 | 0.23mH | 200 | CAB-13V | 229/9 | 178/7 | 178/7 | 82/3.24 | 76/3 | 108/4.26 | 12.7/28 |
RLW-010405 | 104 | 0.375mH | 208 | CAB-13V | 229/9 | 178/7 | 184/7.25 | 108/4.24 | 76/3 | 108/4.26 | 18.6/41 |
RLW-013001 | 130 | 0.095mH | 132 | CAB-13V | 235/9.25 | 191/7.5 | 171/6.75 | 83/3.25 | 76/3 | 108/4.26 | 11.8/26 |
RLW-013003 | 130 | 0.18mH | 152 | CAB-13V | 235/9.25 | 191/7.5 | 171/6.75 | 95/3.75 | 76/3 | 108/4.26 | 16.8/37 |
RLW-013005 | 130 | 0.3mH | 197 | CAB-13V | 235/9.25 | 191/7.5 | 210/8.25 | 121/4.75 | 76/3 | 108/4.26 | 23.6/52 |
RLW-016001 | 160 | 0.08mH | 110 | CAB-13V | 235/9.25 | 191/7.5 | 171/6.75 | 95/3.75 | 76/3 | 108/4.26 | 15.4/34 |
RLW-016003 | 160 | 0.155mH | 195 | CAB-13V | 235/9.25 | 191/7.5 | 210/8.25 | 121/4.75 | 76/3 | 108/4.26 | 22.2/49 |
RLW-016005 | 160 | 0.26mH | 309 | CAB-17V | 235/9.25 | 191/7.5 | 210/8.25 | 121/4.75 | 76/3 | 108/4.26 | 24/53 |
RLW-020001 | 200 | 0.06mH | 159 | CAB-17V | 235/9.25 | 191/7.5 | 178/7 | 10/0.375 | 76/3 | 108/4.26 | 15.4/34 |
RLW-020003 | 200 | 0.115mH | 224 | CAB-17V | 235/9.25 | 191/7.5 | 210/8.25 | 121/4.75 | 76/3 | 108/4.26 | 22.2/49 |
RLW-020005 | 200 | 0.2mH | 293 | CAB-17V | 274/10.8 | 210/8.25 | 229/9 | 149/5.87 | 92/3.63 | 142/5.58 | 34/75 |
RLW-025001 | 250 | 0.05mH | 275 | CAB-17V | 235/9.25 | 191/7.5 | 191/7.5 | 95/3.75 | 76/3 | 108/4.26 | 15.9/35 |
RLW-025003 | 250 | 0.095mH | 284 | CAB-17V | 235/9.25 | 191/7.5 | 216/8.5 | 121/4.75 | 76/3 | 108/4.26 | 24.9/55 |
RLW-025005 | 250 | 0.16mH | 402 | CAB-17V | 274/10.8 | 222/8.75 | 229/9 | 149/5.87 | 92/3.63 | 142/5.58 | 34/75 |
RLW-032201 | 322 | 0.05mH | 300 | CAB-17V | 235/9.25 | 191/7.5 | 229/9 | 121/4.75 | 76/3 | 108/4.26 | 25.9/57 |
RLW-032203 | 322 | 0.07mH | 383 | CAB-26C | 274/10.8 | 222/8.75 | 216/8.5 | 136/5.37 | 92/3.63 | 142/5.58 | 34.5/76 |
RLW-032205 | 322 | 0.13mH | 494 | CAB-26C | 229/9 | 222/8.75 | 279/11 | 187/7.37 | 92/3.63 | 142/5.58 | 49/108 |
RLW-041401 | 414 | 0.033mH | 333 | CAB-26C | 229/9 | 222/8.75 | 241/9.5 | 136/5.37 | 92/3.63 | 142/5.58 | 35.4/78 |
RLW-041403 | 414 | 0.066mH | 531 | CAB-26C | 229/9 | 222/8.75 | 292/11.5 | 174/6.87 | 92/3.63 | 142/5.58 | 44.4/98 |
RLW-041405 | 414 | 0.11mH | 588 | CAB-26C | 229/9 | 222/8.75 | 318/12.5 | 187/7.37 | 92/3.63 | 142/5.58 | 56.7/125 |
RLW-051501 | 515 | 0.025mH | 314 | CAB-26C | 229/9 | 222/8.75 | 241/9.5 | 136/5.37 | 92/3.63 | 142/5.58 | 36.7/81 |
RLW-051503 | 515 | 0.05mH | 496 | CAB-26C | 229/9 | 222/8.75 | 305/12 | 162/6.37 | 92/3.63 | 142/5.58 | 53.5/118 |
RLW-051505 | 515 | 0.08mH | 695 | CAB-26C | 366/14.4 | 292/11.5 | 343/13.5 | 244/9.62 | 117/4.6 | 150/5.9 | 87.5/193 |
RLW-060001 | 600 | 0.02mH | 375 | CAB-26C | 229/9 | 222/8.75 | 267/10.5 | 136/5.37 | 92/3.63 | 142/5.58 | 39/86 |
RLW-060003 | 600 | 0.04mH | 747 | CAB-26C | 366/14.4 | 292/11.5 | 318/12.5 | 206/8.12 | 117/4.6 | 150/5.9 | 65.3/144 |
RLW-060005 | 600 | 0.065mH | 780 | CAB-26C | 366/14.4 | 292/11.5 | 349/13.75 | 219/8.62 | 92/3.63 | 142/5.58 | 92.5/204 |
RLW-075001 | 750 | 0.017mH | 468 | CAB-26C | 229/9 | 222/8.75 | 292/11.5 | 174/6.87 | 92/3.63 | 142/5.58 | 47.6/105 |
RLW-075003 | 750 | 0.035mH | 838 | CAB-26C | 366/14.4 | 292/11.5 | 318/12.5 | 194/7.62 | 117/4.6 | 183/7.2 | 81.2/179 |
RLW-075005 | 750 | 0.055mH | 858 | CAB-26C | 366/14.4 | 292/11.5 | 381/15 | 219/8.62 | 117/4.6 | 183/7.2 | 111.1/245 |
